BLDC Motors & Gear Motors

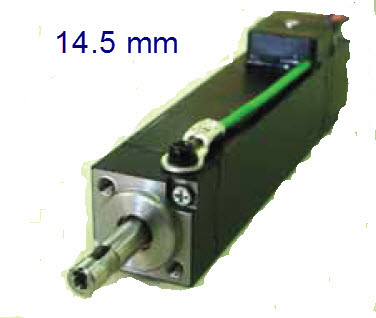

3 to 15 Watt Servo Motors 14.5 mm diameter BLDC servo motors with absolute feedback in 3 watt, 5watt, 10 and 15 watts servo motors in 24 or 48 vdc versions. Applications in medical, bio-science and pipette systems. • Download Specification File |
Brushless Motors with gears for speed, pumps Brushless EC Motors All brushless drives of the ECM-series are now available in standard configuration ex stock from KAG. Please find details on each ECM-drive on this site from preliminary fact sheets. - Available with optional planetary or worm gears. - Integrated drive option. - 24 VDC - Options include optical or magnetic encoder, tacho, brake, specials - Custom designs available for OEM's • Download Specification File |
Emoteq HT and HS High Speed Motors Housed or frameless brushless torque motors are available in nine standard diameters from 19.3 mm (0.760 in) to 127 mm (5 in) with up to six stack lengths each. Continuous torque ratings range from 0.021 Nm (2.9 oz-in) to 4.4 Nm (693 oz-in). Hall effect commutation sensors are integral to the motor, and require no setup on the part of the user. • Download Specification File |
QB NEMA Frame and Frameless Servo Motors Allied Motion's Emoteq Quantum (QB) series of housed frameless brushless servo motors are specifically designed for direct axis integration in machine applications where a housed motor is undesirable. The QB series are brushless kit motors (rotor & stator sets) designed to deliver high performance and servo precision at minimal cost. They can be easily customized to the exact specs required, and high speed QS versions are available with improved efficiency at high speeds. • Download Specification File |
GX Series Servo Gearbox A complement of the NX series. Characterized by a low backlash, GX servo gearboxes are ideal for applications needing high torque and optimum motion quality. In combination with NX servomotors, they offer a compact motor-gearbox solution optimized to provide the best dynamic performances. Speed ratio : - 1 stage : 3, 4, 5, 6, 7, 8, 9 and 10 ratio - 2 stages : 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90 and 100 ratio • Download Specification File |
Compact AC Servo Motors 22-mm square motors: 13, 26, 40W 40-mm square motors: 30, 50, 100W 60-mm square motors: 100, 200W Optional reduction gears (1/5, 1/9, 1/15, 1/25) available for 40-mm and 60-mm square motors. (ref. T12-1612 Catalog) The 40-mm and 60-mm square motors are also offered with or without a brake. • Download Specification File |
NX Series Servo Motor News The NX Series is UL recognized for models with connectors. NX1, NX2 and NX8 UL version is slightly different from standard models. The NX series brushless resolver or absolute encoder servo motors are characterized by a 10-pole innovative design for highest quality of motion, improved torque density and a compact and robust design. With a large choice of torque and speed and an economical design, the NX series is the ideal solution for servo application. • Download Specification File |
