• NEW!  Affordable Linear Motors
  Allow Design Improvements

Eliminate mechanical wear and backlash

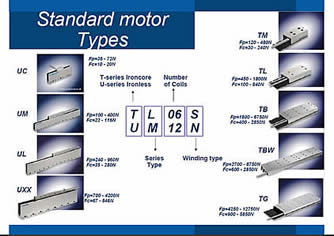

TM-series Iron core Linear Motors from Tecnotion!

Features:

• speeds up to 10 m/s
• accelerations up to 20 g
• peak forces of 120 N to 480 N
• no complex and expensive mechanics needed to go linear
• no mechanical wear, no maintenance
• can be used in a rough, but also in a clean room environment
• complete absence of backlash, giving stiff control response
• extremely precise positioning, high repeatability
• direct force, little latching force

Example Applications:

• Pick and place tasks, very fast and accurate
• Printers, with very smooth speed behavior
• CTP Newspaper & Magazine, always the same accurate result without loss over time
• Small CNC machines, extremely accurate and improved throughput
• Water jet cutters, low cost, no wear, no backlash
• Laser cutter & scribers

Download Manuals & Drawings- Ironless Linear Motors

Download Manuals & Drawings- Iron Core Linear Motors

Request Manuals & Drawings

Analog Hall Sensor functions as Sinusoidal Encoder Source for Interpolation

Download Manual:

- Installing Iron Core Linear Motors
Installing_Ironcore_EN_V3.0_20080408

- Installing Ironless Linear Motors
Installing_Ironless_ENV2.3_20080403

READ: ABOUT TECNOTION
Tecnotion_Presentation_December2008
