LIBRARIES > MAXCLib™
MAXCLib™ is an ANSI C library for the MAX 3000™ and microMAX R line of controllers. The library was designed to operate as a packet generator and to allow total flexibility to the user. This structure allows MAXCLib™ to be operating system independent and very compact. The library provides the user with a complete interface to the controller. The library is small enough to compile on 8-bit micros and power enough to be used on the most sophisticated system.
OS Supported: Any that have an ANSI C compiler.

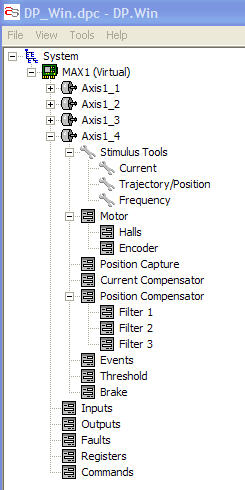

DP·Win™ is a Windows based configuration, monitor and diagnostic tool with integrated user documentation. DP·Win™ enables the quick set-up, tuning and exercise of Agile Systems' digital power products MAX 3000™ and microMAX R.
Call US! 1-800-433-3434
Contact US!
|

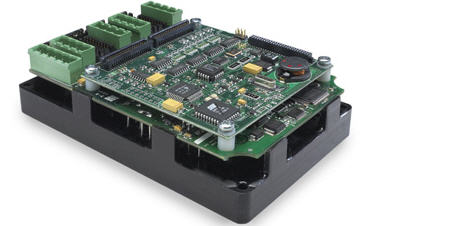

Multi-axis Motion Controller features multiple DSP's for the ultimate Motion Control. In any system there is one DSP for the Position Loop, and, each digital amplifier axis has its own DSP for the Current Loop. This strategy provides the highest quality motion.
Download:
Agile_PB_MAX3000_Brochure
Download Documentation:
Agile_Systems_microMAXR_GettingStartedGuide
Agile_Systems_Command_Interface
Agile_Systems_Command_Reference
Agile_Systems_Register_Reference
AGILE_Using_Tamagawa_Absolute_Encoders_App_Note
Download:
PVT, PT trajectory: TB%20002-11-0

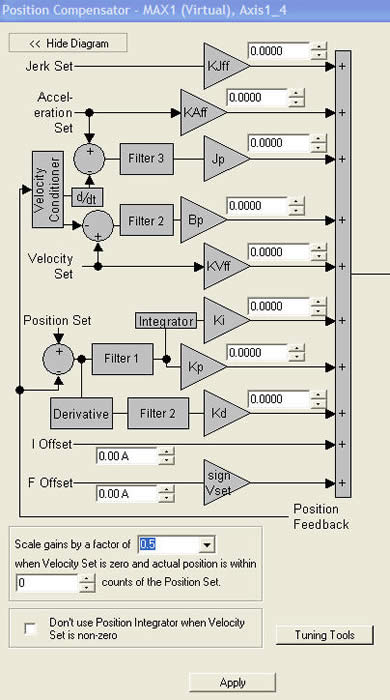

Position Compensator: TB%20016-12-06
Review Presentation:
Agile_Systems_Overview (8.3 MB)
 Axis - 2-4 axes of high performance digital signal processing based control, digital power block technology
Supports: FireWire®, Ethernet, RS232/485/422
Commutation - Sinusoidal
Profiles - S-curve and trapezoidal
Performance Options - PVT, PT set-point streaming
Motors supported - Brushed, Brushless, stepper and voice coil motors
Encoder support - quadrature, serial and sin/cos encoders, absolute
Amplifier - 1 to 15 amps, 90 VDC
Opto Inputs 4-16
Differential Inputs 2-4
Analog Inputs 2-4
Opto Outputs 2-4
High Current Outputs 2-4
Benefits
Up to 50% reduction of cabling
Increased reliability
On-board programming [off-loads host processing]
Compact design [eliminates costly external panel]
Advanced PID loop [increased performance]
Common interface for various motor types
Related Links:
Tamagawa_Absolute_Encoders
Tamagawa_Smart_Absolute_TS5643N100_Spec
(STOCK item at AdvanTech International)
