SR Stages: Compact, small footprint, open type positioning stage for carrying lighter loads. It is driven by an ironless core, non-cogging 3 phase brushless linear motor and guided by 2 recirculating ball bushing guides on a single linear rail.
This revolutionary new series of single axis linear stepper stages, integrates a linear encoder into the single-axis linear stepper motor stage to operate the linear stepper motor as a 2 phase brushless linear motor, when coupled with state-of-the-art motion control electronics package provided by H2W. This allows H2W’s stage to achieve speeds and accelerations previously unachievable with a linear stepper motor.
Brushless-Slotless Linear Motors
Download:
H2W_Brushless_Linear_Motor Datasheet
H2W_Linear_Application_Worksheet
H2W_Linear_Products_Catalog
Call for Application and Selection Assistance.
Call US! 1-800-433-3434
Contact US!
|

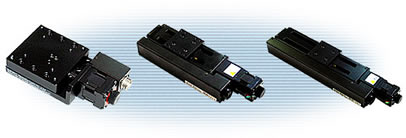

(TOP) Motorized X-Y-Z stages are miniature high precision stages. Miniature five phase motors combined with various drivers and high quality components make this package unique.
Compact Design
Travel Distance (Stroke) 35mm to 200mm
Accuracy 0.02mm
Repeatability ± 0.003mm
Backlash ± 0.003mm
Aurotek_Catalog
Call US! 1-800-433-3434
Contact US!
| Group Six is excited to announce Kuroda's new line of Miniature Motorized Linear Actuators with the smallest five phase motor in the market - 24mm diameter. These precision guide Actuators are factory assembled and feature a high degree of accuracy, rigidity and compactness through the integration of a precision ball screw with a precision slide guide for a single axis module.
Kuroda Application Sheet
|
 |
|
Accurate multi-point positioning
* Repeated positioning accuracy:
±0.003mm (SG 20, 26, 33 and 46 Precision Grade)
Most suitable positioning unit can be configured according to applications.
* Types of ball screw used: High and Precision Accuracy Grade
* Widths of guide rail used: 40, 50, 60, 86 and 100mm
* Types of slide block used: Short block and long block
* Quantity of slide block used: 1 and 2
* Intermediate flanges for different motor brackets available.
* Dust proof cover and sensor can be mounted. (Option)
|
|
